Padmawati Extrusion Pvt. Ltd. I Curtain Wall section Aluminum Extrusion Padmawati Extrusion Pvt. Ltd

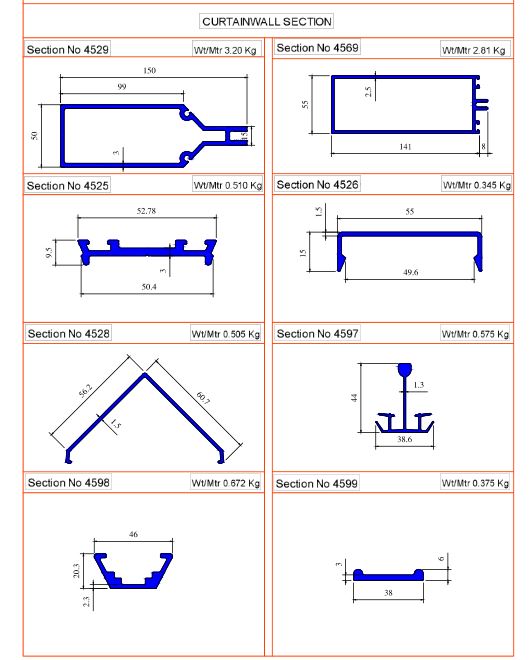

4529: Curtain wall mullion profile, 150×50mm, 3.20kg/m, high-strength architectural aluminium. 4569: Rectangular curtain wall mullion, 141×55mm, 2.81kg/m, premium aluminium extrusion. 4525: Aluminium glazing clip / holder profile, 52.78mm width, 0.510kg/m, precision aluminium. 4526: Aluminium cover / capping profile, 55mm width, 0.345kg/m, façade-grade aluminium. 4528: Angular aluminium profile for façade edges, 56.2×60.7mm, 0.505kg/m, architectural aluminium. 4597: Aluminium connector / pressure plate profile, 38.6×44mm, 0.575kg/m, high-quality aluminium. 4598: Aluminium support / channel profile, 46mm width, 0.672kg/m, premium extrusion. 4599: Slim aluminium flat profile, 38mm width, 0.375kg/m, precision-extruded aluminium.
Product manufacturer
Padmawati Extrusion Pvt. LtdProduct Category
Aluminum Extrusion
Padmawati Extrusion Pvt. Ltd Aluminum Extrusion Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
4529: Curtain wall mullion profile, 150×50mm, 3.20kg/m, high-strength architectural aluminium. 4569: Rectangular curtain wall mullion, 141×55mm, 2.81kg/m, premium aluminium extrusion. 4525: Aluminium glazing clip / holder profile, 52.78mm width, 0.510kg/m, precision aluminium. 4526: Aluminium cover / capping profile, 55mm width, 0.345kg/m, façade-grade aluminium. 4528: Angular aluminium profile for façade edges, 56.2×60.7mm, 0.505kg/m, architectural aluminium. 4597: Aluminium connector / pressure plate profile, 38.6×44mm, 0.575kg/m, high-quality aluminium. 4598: Aluminium support / channel profile, 46mm width, 0.672kg/m, premium extrusion. 4599: Slim aluminium flat profile, 38mm width, 0.375kg/m, precision-extruded aluminium.
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
More Products from
Padmawati Extrusion Pvt. Ltd
Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
Padmawati Extrusion Pvt. Ltd
₹350
Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
Padmawati Extrusion Pvt. Ltd
₹350
Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
Padmawati Extrusion Pvt. Ltd
₹350
Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
Padmawati Extrusion Pvt. Ltd
₹350
Padmawati Extrusion Pvt. Ltd. I casement window section
Padmawati Extrusion Pvt. Ltd
₹350
Padmawati Extrusion Pvt. Ltd. I Rectangular Tubes
Padmawati Extrusion Pvt. Ltd
₹350
Services & Tools
Comprehensive services and tools to support your Aluminum Extrusion project needs
Product Comparison
Complete Technical Specifications for Padmawati Extrusion Pvt. Ltd Padmawati Extrusion Pvt. Ltd. I Curtain Wall section
| Property | Value | Unit |
|---|---|---|
| Section Code | 4529, 4569, 4525, 4526, 4528, 4597, 4598, 4599 | — |
| Application | Curtain wall mullions, transoms, pressure plates, caps, glazing support profiles | — |
| Industrial | Building & Construction | — |
| Shapes | Box sections, mullion profiles, transom profiles, pressure plates, cap and cover profiles | — |
| Size | 38 - 150 | mm |
| Thickness | 1.5 - 3.0 | mm |
| Finish | Mill finish, Anodized, Powder Coated | — |
| Weight Range | 0.345 - 3.200 | kg/m |
Product Documents & Downloads
No documents available for this product
