Product manufacturer

Jindal Aluminium

Product Category

Aluminum Extrusion

Jindal Aluminium Aluminum Extrusion Jindal I Aluminum Extrusion I Display section

Jindal Aluminium Display Extrusion Sections are specially designed aluminium profiles used for retail displays, exhibition systems, signage, and showroom fixtures. These sections combine lightweight strength with clean aesthetics, enabling flexible and modular display solutions. Manufactured from high-quality aluminium alloys using precision extrusion technology, Jindal display sections offer accurate dimensions, smooth surface finish, and excellent structural stability. The profiles are designed for easy assembly, integration of panels, graphics, glass, and lighting elements, making them ideal for both temporary and permanent display installations.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Aluminum Extrusion project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Jindal Aluminium Jindal I Aluminum Extrusion I Display section

PropertyValueUnit

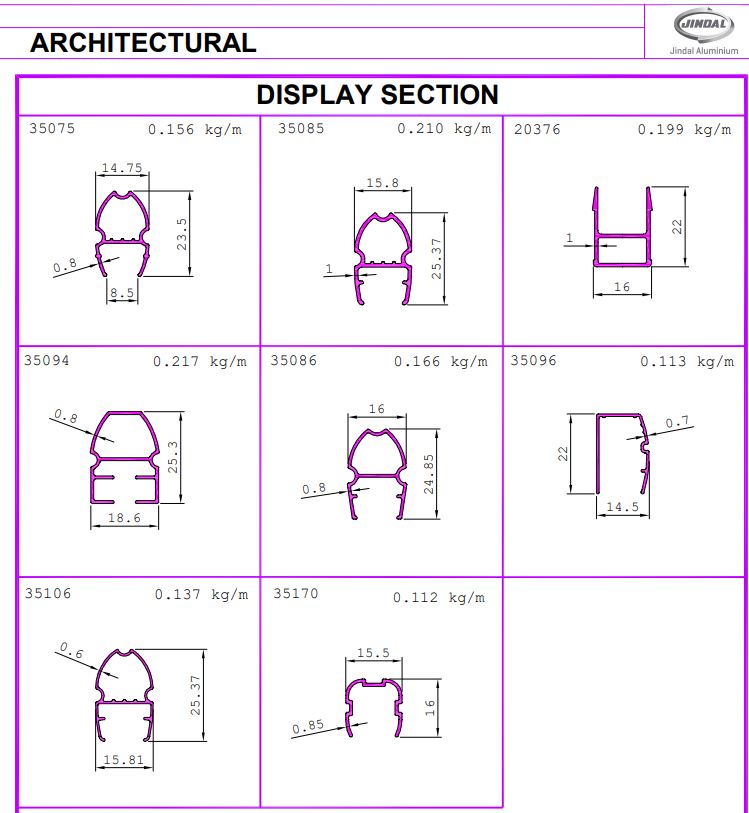

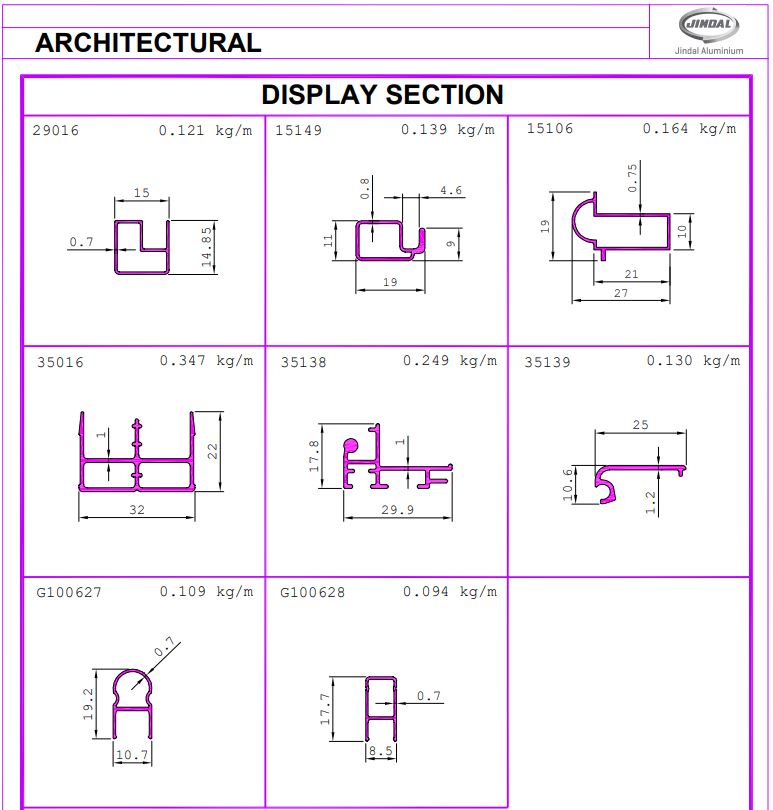

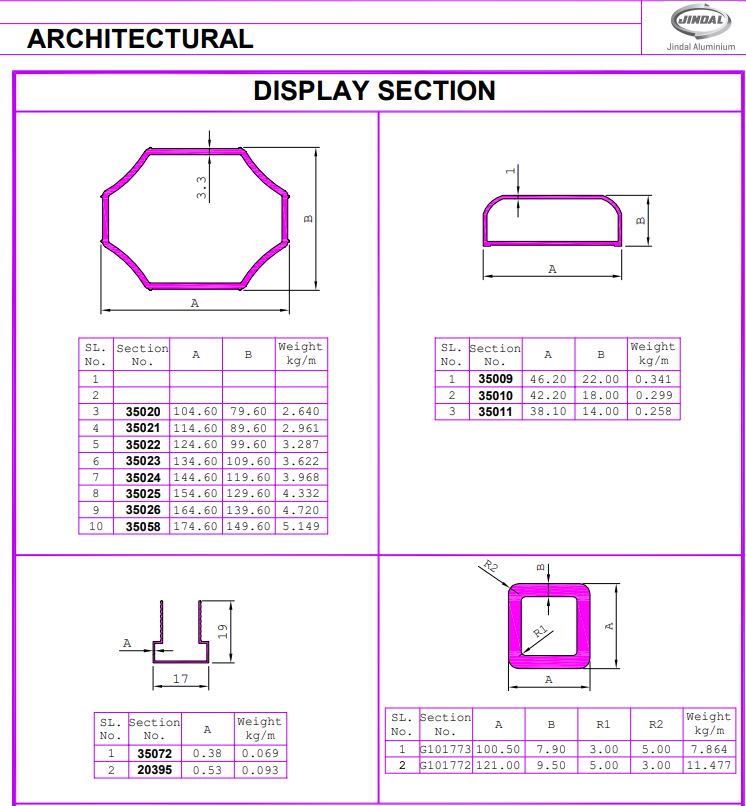

Section Code35020, 35021, 35022, 35023, 35024, 35025, 35026, 35058, 35009, 35010, 35011, 35072, 20395, 35016, 35138, 35139, 35017, 35019, 20352, 17648, 35015, 35075, 35085, 20376, 35094, 35086, 35096, 35106, 35170, 20359, 20368, 20369, 20375, 35069, 35163, 35042, G103257, 20353, 29145, 35007, 29576, 20356, 20361, 20365, 20473, 20474, 20484, 35105, 35147, 35148, 35116, 35060, 35039, 35171, 35108, 35123, 28675, 20485, 35005, 29162, 28977, 35055, G100809, 35067, 35052, 35014, 35029, 27919, 20472, 20490, G101124, 35150, 35149, 35151, 35152, 35153, 20367, 35107, 35070, 20358, 20430, 20374, 20471, 35054, 20393, 20470, 35089, 35140, 35098, 35092, 35141, 35134, G101358, G101359, 29456, 29249, 34063, 35093, 34021, 34082, 34088, 35180, G101918, 20405, 20392, 35004, 35114, 20447, 34553, 34604, 29601, 20424, 20425, 20411, 20412, 20441, 20487, 20488, 35041, 35059, 20381, 20382, 35077, 20494, 35091, 35064, 35124, 35080, 29712, 35066, 35084, 35117, 35142, 35143, 35154, 35164, 35136, 35030, 35132, 35102, 35167, S5391, 35104, 38782, 35165, 27918, 20483, 35169, 35173, 34636, G101184, 29713, G103862, G101209
ApplicationRetail Display Systems, Showroom Fixtures, Architectural Panels, Signage Frames, Exhibition Structures
IndustrialArchitecture, Building & Construction, Retail Fit-Out, Commercial Interiors
ShapesBox Sections, Curved Profiles, Round Display Sections, Modular Profiles, Custom Architectural Shapes
Size10 - 247mm
Thickness0.50 - 5.00mm
FinishMill Finish, Anodized, Powder Coated, Decorative Finish
Weight Range0.062 - 10.315kg/m
Track OptionsStandard Length, Cut-to-Length, Custom Fabrication
Material
weightany
