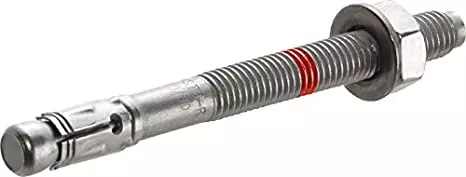

HST M10X130 General Purpose Anchor Fasteners HILTI
High loading capacity force-controlled expansion suitable for tension zone suitable for shock loading fire prevention assessment pre-assembled with nut and washer save time cold formed
Product manufacturer
HILTIProduct Category
General Purpose Anchor Fasteners
HILTI General Purpose Anchor Fasteners HST M10X130
High loading capacity force-controlled expansion suitable for tension zone suitable for shock loading fire prevention assessment pre-assembled with nut and washer save time cold formed
Loading specs...
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
Services & Tools
Comprehensive services and tools to support your General Purpose Anchor Fasteners project needs
No active Tools & Services currently
Product Comparison
Complete Technical Specifications for HILTI HST M10X130
| Property | Value | Unit |
|---|---|---|
| Product Code | HST M10XM130 | — |
| Features | High loading capacity, force-controlled expansion, suitable for tension zone, suitable for shock loading, fire prevention assessment, pre-assembled with nut and washer save time, cold formed | — |
| Application | Concrete, Tension zone, Corrosion resistance, shock, Close edge, Fire resistance Hilti Anchor programme, High corrosion resistance | — |
| Drill bit dia | 10 | mm |
| Anchor Length | 130 | mm |
| Thread Length ( HST) | 70 | mm |
| Width across nut flats | 17 | mm |
| Clearance hole diameter | 12 | mm |
| Min depth drill hole | 80 | mm |
| Effective embed depth | 60 | mm |
| Max fastenable thicknedd | 50 | mm |
| Min concrete thickness | 120 | mm |
| Drill bit | TE-CX-10 | — |
| Rec tightening torque | 45 | nm |
Product Documents & Downloads
No documents available for this product
