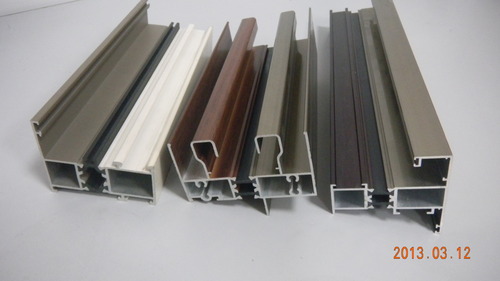

Hasten Extrusions Pvt. Ltd Aluminum Extrusion Hasten extrusions pvt. ltd I Industrial Profile I Display & AHU Profiles

Industrial aluminium display and AHU profiles are precision-extruded sections designed for modular structures, display systems, and air-handling unit (AHU) frameworks. These profiles are available in compact and heavy-duty configurations with typical widths around 36 mm to 80 mm, heights near 40 mm, wall thicknesses approximately 1.8–2.0 mm, and weights ranging from about 0.38 kg/m to 1.81 kg/m depending on the section. Manufactured from high-quality aluminium alloy, these profiles offer excellent strength, corrosion resistance, and dimensional accuracy for industrial, HVAC, and display applications.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Aluminum Extrusion project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Hasten Extrusions Pvt. Ltd Hasten extrusions pvt. ltd I Industrial Profile I Display & AHU Profiles

PropertyValueUnit

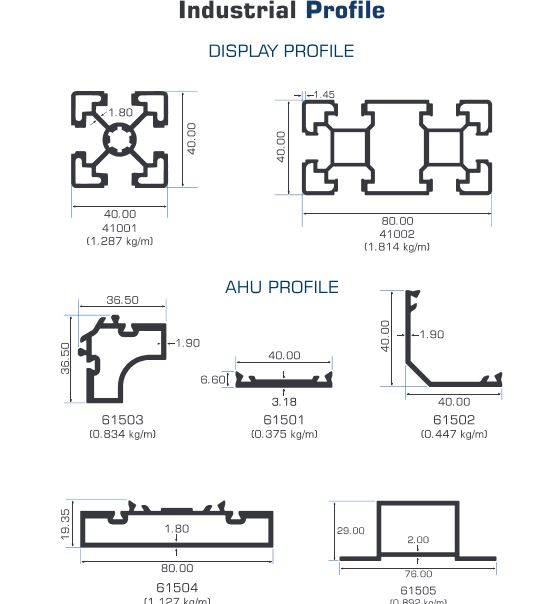

Section Code41001, 41002, 61501, 61502, 61503, 61504, 61505
ApplicationDisplay Systems, Exhibition Stands, Modular Structures, AHU Panels, HVAC Equipment Frames
IndustrialIndustrial Infrastructure, HVAC, Display & Exhibition Systems, Building Services
ShapesDisplay Profile, Modular Frame Profile, AHU Frame Profile, Support Profile
Size36.50 × 19.35 - 80.00 × 40.00mm
Thickness1.45 - 2.00mm
FinishMill Finish, Anodized, Powder Coated
Weight Range0.375 - 1.814kg/m
Track OptionsBolt-On System, Slot-Based Assembly
Material
