Product manufacturer

Hasten Extrusions Pvt. Ltd

Product Category

Aluminum Extrusion

Hasten Extrusions Pvt. Ltd Aluminum Extrusion Hasten extrusions pvt. ltd I Rectangular Tubes I Special Rectangular Tube I Squre I Triangle Tube

Aluminium square tubes are hollow structural profiles widely used for fabrication, framing, railings, furniture, and architectural applications. These tubes are available in sizes ranging approximately from 19 × 19 mm to 85 × 85 mm, with wall thicknesses between about 1.0 mm and 3.2 mm and weights varying roughly from 0.19 kg/m to 2.48 kg/m depending on size. Manufactured from high-quality aluminium alloy, square tubes provide excellent strength, corrosion resistance, dimensional accuracy, and long-term durability.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Aluminum Extrusion project needs

No active Tools & Services currently

Product Comparison

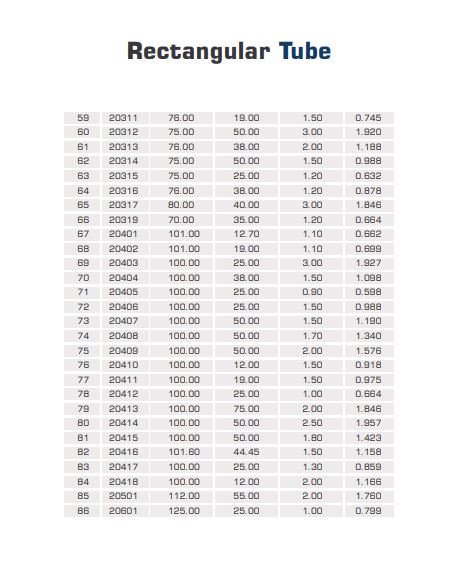

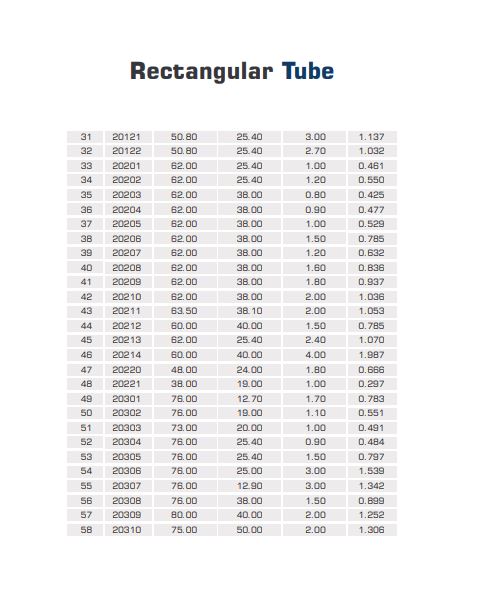

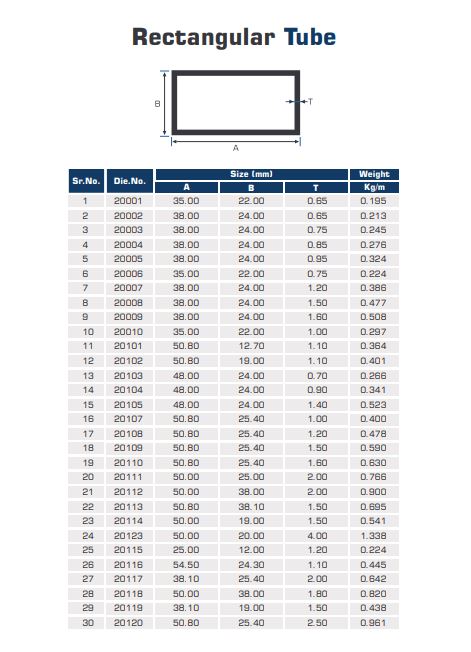

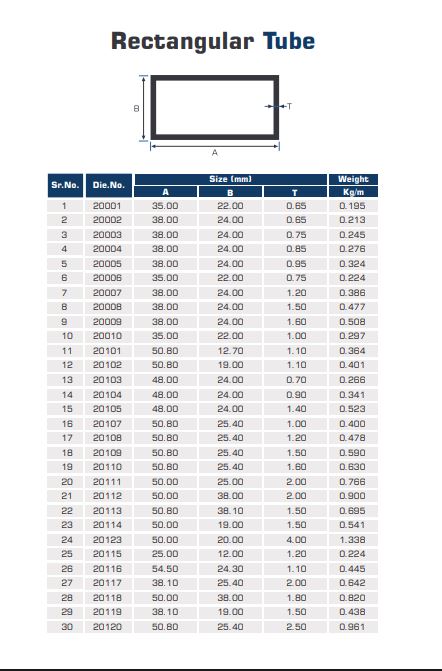

Complete Technical Specifications for Hasten Extrusions Pvt. Ltd Hasten extrusions pvt. ltd I Rectangular Tubes I Special Rectangular Tube I Squre I Triangle Tube

PropertyValueUnit
Section Code20001, 20002, 20003, 20004, 20005, 20006, 20007, 20008, 20009, 20010, 20101, 20102, 20103, 20104, 20105, 20107, 20108, 20109, 20110, 20111, 20112, 20113, 20114, 20123, 20115, 20116, 20117, 20118, 20119, 20120, 20121, 20122, 20201, 20202, 20203, 20204, 20205, 20206, 20207, 20208, 20209, 20210, 20211, 20212, 20213, 20214, 20220, 20301, 20302, 20303, 20304, 20305, 20306, 20307, 20308, 20309, 20310, 20311, 20312, 20313, 20314, 20315, 20316, 20317, 20319, 20401, 20402, 20403, 20404, 20405, 20406, 20407, 20408, 20409, 20410, 20411, 20412, 20413, 20414, 20415, 20416, 20417, 20418, 20501, 20601, 35201, 35501, 25101, 25102, 25301, 25302
ApplicationWindows, Doors, Façade Framing, Curtain Wall, Partitions, Railings, Furniture
IndustrialBuilding & Construction, Architectural, Infrastructure

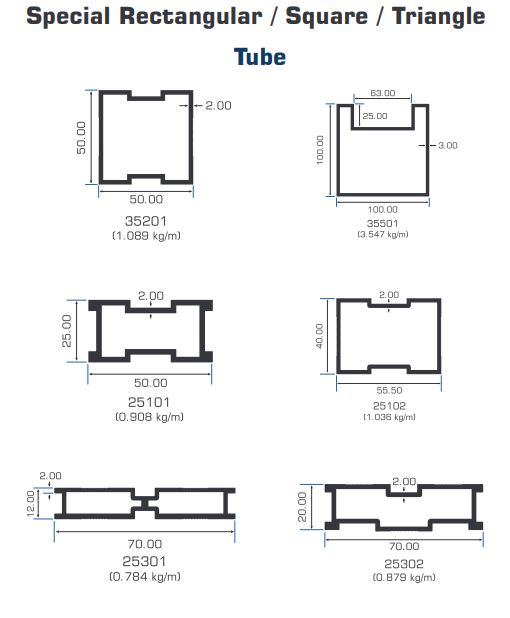

ShapesRectangular Tube, Special Rectangular Tube, Box Section
Size35 × 12 - 125 × 75mm
Thickness0.65 - 4.00mm
FinishMill Finish, Anodized, Powder Coated
Weight Range0.195 - 3.547kg/m
Track OptionsStandard Length, Cut to Length, Custom Die
Material

Product Documents & Downloads

No documents available for this product
