Product manufacturer

Hasten Extrusions Pvt. Ltd

Product Category

Aluminum Extrusion

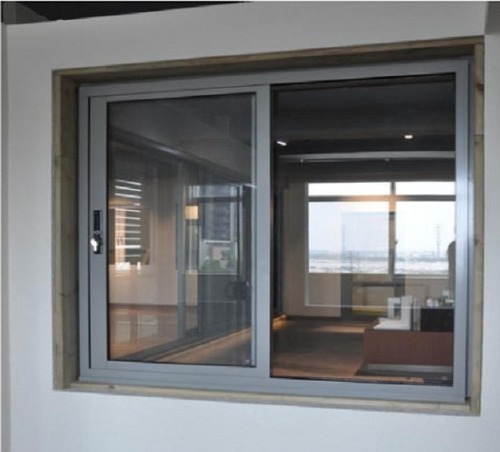

Hasten Extrusions Pvt. Ltd Aluminum Extrusion Hasten extrusions pvt. ltd I Sliding Window I 18 mm Series

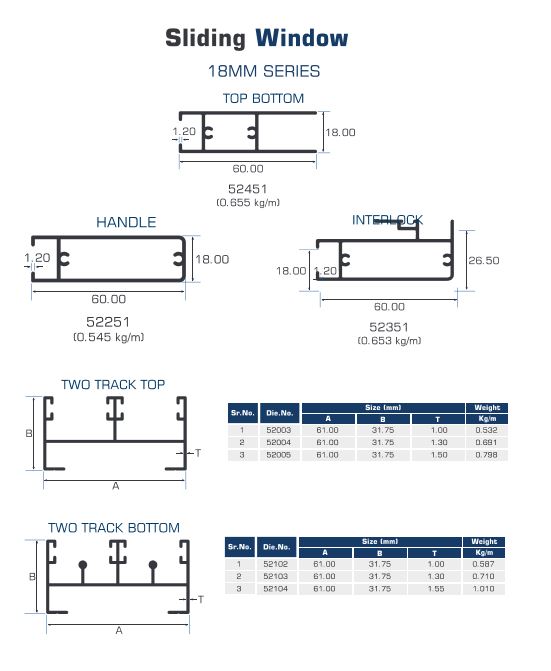

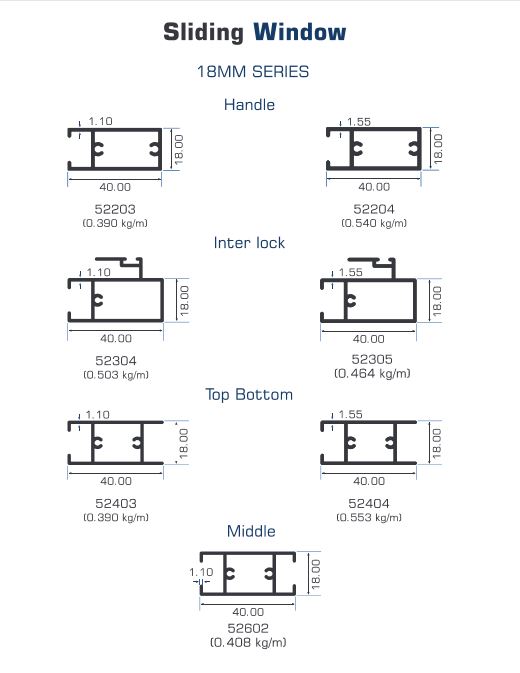

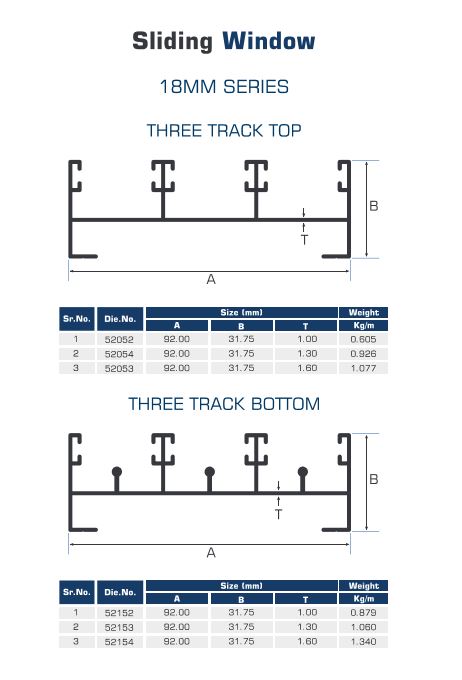

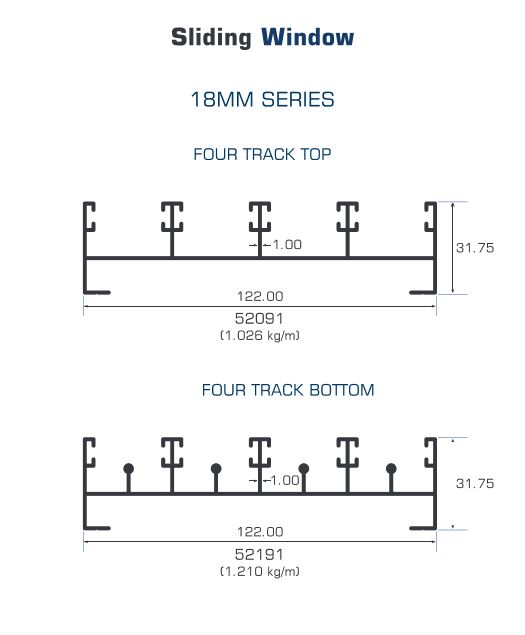

The Sliding Window 18 mm Series includes aluminium profiles for two-track, three-track, and four-track top and bottom frames, along with handle, interlock, middle, and top–bottom sections designed for smooth sliding and secure panel alignment. These profiles typically have a height of about 31.75 mm, widths ranging from 40 mm to 122 mm, and wall thicknesses around 1.0 mm to 1.6 mm, with weights approximately from 0.39 kg/m to 1.34 kg/m depending on the section. Manufactured from high-quality architectural aluminium, this series ensures durability, smooth operation, and clean aesthetics for residential and commercial sliding window systems.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Aluminum Extrusion project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Hasten Extrusions Pvt. Ltd Hasten extrusions pvt. ltd I Sliding Window I 18 mm Series

PropertyValueUnit
Section Code52052, 52054, 52053, 52152, 52153, 52154, 52091, 52191, 52203, 52204, 52304, 52305, 52403, 52404, 52602, 52451, 52251, 52351, 52003, 52004, 52005, 52102, 52103, 52104
ApplicationSliding Windows, Residential Windows, Commercial Windows, Aluminium Fenestration Systems
IndustrialBuilding & Construction, Architectural, Fenestration
ShapesTrack Top, Track Bottom, Handle Section, Interlock Section, Middle Section
Size40.00 × 18.00 - 122.00 × 31.75mm
Thickness1.00 - 1.60mm
FinishMill Finish, Anodized, Powder Coated
Weight Range0.390 - 1.340kg/m
Track OptionsTwo Track, Three Track, Four Track
Material

Product Documents & Downloads

No documents available for this product
